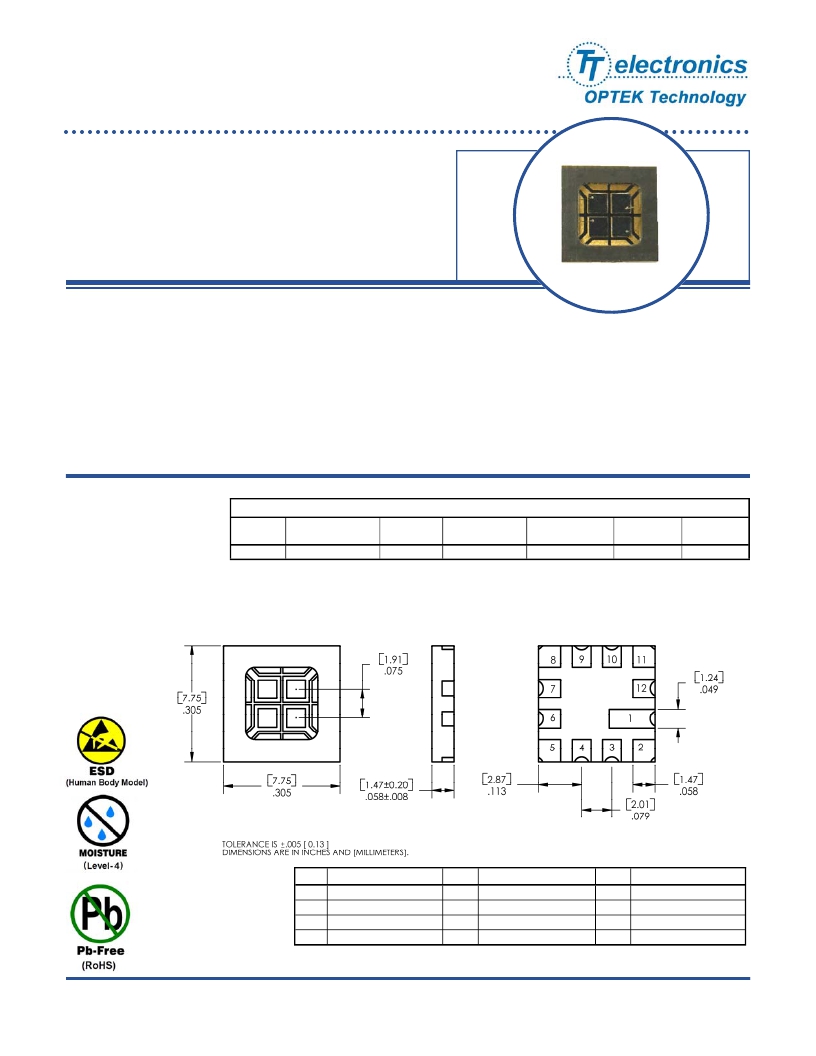

Surface Mount Quad Photodiode
OPR5925
Features:
?
?
?
?
Surface mountable
Closely matched responsivity
High temperature operation
Separate cathode connections
Description:
Each OPR5925 device is a four-element photodiode that is enclosed in a compact polyamide chip
carrier and designed for a variety of encoder and control applications. The single chip construction ensures
excellent matching and very tight dimensional tolerances between active areas. The custom opaque package
shields the photodiodes from stray light and can withstand multiple exposures to the most demanding soldering
conditions, while the wraparound gold-plated solder pads offer exceptional storage and wetting characteristics.
Each anode and cathode in the OPR5925 is bonded out separately, which enables external connection in any
desired configuration to match the sensing circuit requirements.
See Application Bulletin 237 for handling instructions.
Applications:
Ordering Information
?
?
Encoder applications
Control applications
Part
Receiver Type
Number
OPR5925 Photodiode Array
# of
Elements
4
Responsivity
(mA/mW) Min.
0.45
Reverse Voltage Active Area
Min. (mm 2 )
35 0.75 (each)
Packaging
Tube
Warning : Front
Window is pressure
sensitive. Do not
apply pressure or
high vacuum to
window.
OPR5925
Pin #
1
2
3
4
OPR5925
Anode 1
Cathode 1
N. C. / N.C.
N. C. / N.C.
Pin #
5
6
7
8
OPR5925
Cathode 2
Anode 2
Anode 3
Cathode 3
Pin #
9
10
11
12
OPR5925
N. C. / N.C.
N. C. / N.C.
Cathode 4
Anode 4
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. — 1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Issue B 03/2012
Page 1 of 2
